TFT Controller Board

XinSun Display has been developing diversity of display controller boards for our customers upon to different applications and devices.


The Display Solutions Integrated Board can assist customers to integrate the signal between controller board and display, also cut down the fee and time consumption from software and hardware development based on different application needs.


You only need to connect your SBC, GPU, or Display Card to LCD Display via our Display Solution Integrated Board, the display can easily be acted.


Meanwhile, XINSUN Display can redesign the size of AD board and give assistance on the software development based on our customers’ needs.

TFT Controller Board

HDMI Board / AD Board

HDMI Board

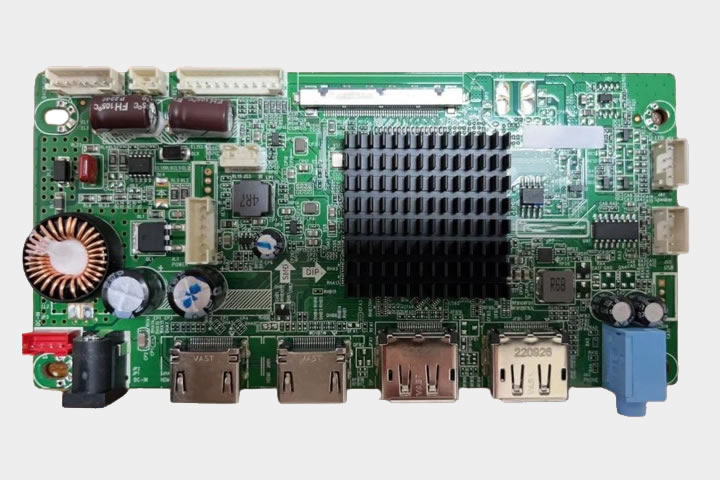

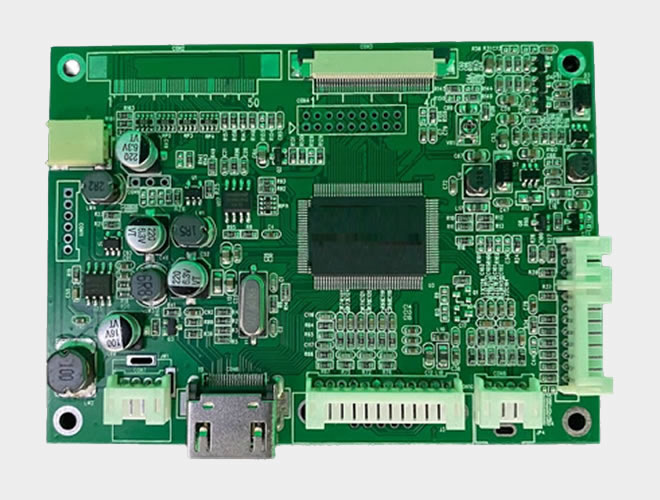

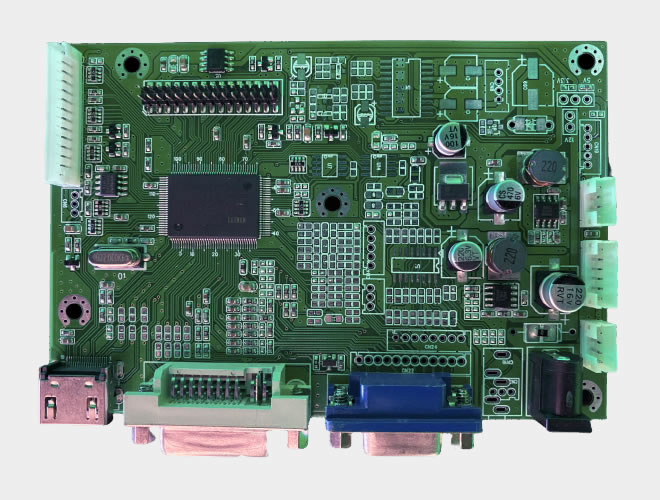

AD Board
NO. Size Display Resolution Part Number Interface Specification
01. 5” TFT 800 x 480 XF050WV01A-TDNL HDMI View
02. 5” TFT 800 x 480 ADB050WV01AM1 CVBS / VGA / OSD View
03. 5” TFT 800 x 480 PXF050800480C-TRNL MCU View
04. 7” TFT 800 x 480 ADB-070WV01AH TTL → HDMI View
05. 7” IPS 1024 x 600 ADB-070WSV01AH1 LVDS → HDMI View
06. 7” IPS 1280 x 800 XF070WX01AC-IDNL MIPI → HDMI
07. 10.1” IPS 1280 x 800 ADB-101WX03AH1 LVDS → HDMI View
08. 12.1” IPS 1280 x 800 ADB-121WX01AM1 LVDS → HDMI View
09. 15.6” IPS 1920 x 1080 ADB-156FHD02AM1 eDP → VGA / HDMI View
10. 15.6” IPS 1920 x 1200 ADB-156FHD03AM1 DP / VGA / HDMI View
11. 15.6” IPS 4K ADB-156UHD02AM1 HDMI IN / eDP Out / OSD View
12. 27” IPS 4K ADB-270UHD01AM1 HDMI / DP / USB View
TFT Controller Board

Android Board

NO. Part Number Specification
01. XMB-3566Z37 View
02. XMB-3568Z29 View
